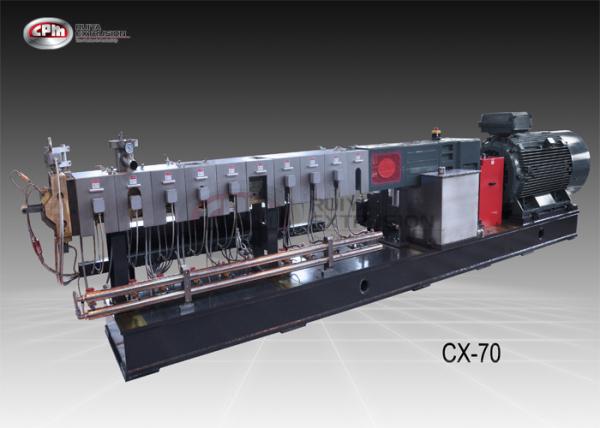

CX70 High-end Twin Screw Extruder, for Powder Coating process, 70mm screw diameter
CX Machine
| Model |
D(mm) |
Central Distance(cm) |
Max L/D |
Screw Speed(rpm) |
Max Power (kw) |
Torque/Shaft(Nm) |
| CXE/CX25 |
25 |
2.11 |
72 |
1200 |
21 |
81 |
| CXE/CX26 |
26 |
2.11 |
72 |
1200 |
35* |
139* |
| CXE/CX32 |
32 |
2.62 |
72 |
1200 |
83 |
315* |
| CXE/CX40 |
40 |
3.34 |
72 |
1200 |
110/170* |
425/675* |
| CXE/CX45 |
45 |
3.75 |
72 |
1200 |
245 |
930* |
| CXE/CX50 |
50 |
3.95 |
72 |
1200 |
200 |
800 |
| CXE/CX58 |
58 |
4.80 |
72 |
1200 |
355/503* |
1440/2000* |
| CXE/CX70 |
70 |
5.85 |
72 |
1200 |
630/880* |
2450/3500* |
| CXE/CX92 |
92 |
7.60 |
72 |
1200 |
1250/1583* |
6000/6300* |
| CXE/CX103 |
103 |
8.50 |
72 |
1200 |
1600 |
8300 |
| CXE/CX105 |
105 |
8.60 |
72 |
1200 |
2558* |
10176* |
| CXE/CX133 |
133 |
11.00 |
72 |
1000 |
3600* |
17500* |
| *This power and torque data is for CXE/CX HO Series. |
Powder Coating Application Features:
1. High wear resistance material of barrel and elements.
2. Intensive cooling required for barrels and shafts technology.
3. Good dispersion of material.
4. Supplied more than 20 lines worldwide.
Main Principle and Use
This series has been develped through 25 years of focus on customers' requirements. They are globally
well known as the benchmark in the market. The criteria for building a CXE/CX extruder is: highest level of
quality, highest level of reliability and highest flexibility towards customer requirements. Regarding all
different machine parts, we will select all components, gearbox and shaft material with keeing in mind these
criteria.
CX Machine for Powder Coating
The CX Series was developed for high level users of twin screw extruders that are searching for the
same level of throughput, quality and reliability at a reduced cost. The CX incorporates the following
features:
Screw geometry based on western standards;
High torque European gearbox and lubrication system;
Century and Extricom high performance screws, barrels and shafts;
Screw speeds up to 1200 RPM;
Supported by CPM global service.
